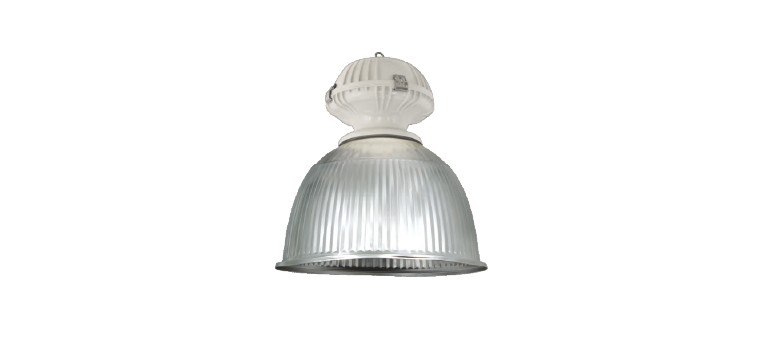

Vancouver Highbay Luminaires

Vancouver
vancouver-highbay-luminaires

  • Reflector:Aluminium / Injection PC
  • Ballast:EN 60923 EN 61347-2-9
  • Gear Box:GRP
  • Base:EN 60238 Porcelain
  • Lamp Type:HPI-BU,SON,ML, CDM-T
  • Igniter:EN 61347-2-1
  • Options:Tempered glass, Wire guard

Code Type Power Lamp Type Igniter Luminous Flux Capacitor Dimensions (mm) Weight Volume Base Pcs / Pack Ballast
5212 3010 Ceyhan 85 PL-E - 5100 - 285x500x245x485 8 0,05500 E-27 4
5212 3010 Ceyhan 160 ML 160 - 3100 - 285x500x245x485 8 0,05500 E-27 4
5212 3021 Ceyhan 150 SON 150 70-400 14000 20 285x500x245x485 15,7 0,05500 E-40 4 Inductive
5212 3031 Ceyhan 250 SON 250 70-400 25000 32 285x500x245x485 20,6 0,05500 E-40 4 Inductive
5212 3021 Ceyhan 150 HPI-BU 150 70-400 12000 20 285x500x245x485 21,5 0,05500 E-40 4 Inductive
5212 3031 Ceyhan 250 HPI-BU 250 70-400 19000 32 285x500x245x485 15,7 0,05500 E-40 4 Inductive
5212 3041 Ceyhan 400 HPI-BU 400 70-400 34000 35 285x500x245x485 20,6 0,05500 E-40 4
5213 3310 Ceyhan PC 85 PL-E - 5100 - 285x500x245x485 21,5 0,05500 E-27 4
5213 331 Ceyhan PC 160 ML 160 - 3100 - 260x465x245x12 8 0,05500 E-27 4 Inductive
5213 3321 Ceyhan PC 150 CDM-T 150 70-400 12000 20 260x465x245x12 15,7 0,05500 G-12 4 Inductive
5213 3331 Ceyhan PC 250 HPI-BU 250 70-400 19000 32 260x465x245x12 20,6 0,05500 E-40 4 Inductive
